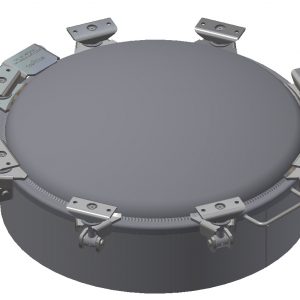

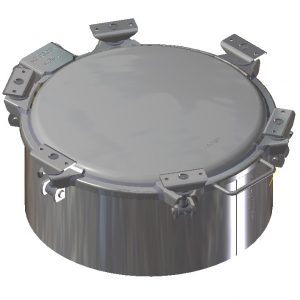

Pressure Access Doors: AT1110

Choose from standard sizes ranging from 8″-24″ or create a custom sized manway or pressure hatch. Pressure rated applications also vary according to series, PSI and levers. These hatches are well suited for many industrial and agricultural products due to their full-opening capability.

Call Us: 800.527.8775
Contact Us For Quote
Download PDF Spec Sheet

Categories: ,

Product Description

Description 18-7/8“ < 14.7 PSI Carbon Steel Hot Products Manway – Braided Teflon Gasket
Series AT
Shape Round
Size 18 7/8“
Part Number AT1110
Cover Materials Carbon Steel
External Materials Zinc Plated Carbon Steel
Weld Ring Carbon Steel
Ring Height 11“
Gasket Teflon
Fill Cover None
Vent None
Clamp Cross Arm
Working Pressure 14.7 PSI
Vacuum Relieving N/A
ASME Certified No
Pressure Relieving N/A
