48 Sizes  |  Style CC-HD & Style U-HD  |  Prime Virgin Polyethylene.

Sizes and Dimensions
AGRICULTURAL STYLE FOR HANDLING:FEATURES:
GRAINSLONG LASTING
FEEDSTOUGH AND FLEXIBLE
FERTILIZERSTHICK WALLS
SEEDSLIGHT WEIGHT
SALTCLEAN DISCHARGE
SANDLESS PRODUCT DAMAGE
CHEMICALSREDUCES BACKLEGGING
FOOD PRODUCTSNONSPARKING
NON CORROSIVE

CC-HD Polyethylene Options:

Request Free Quote
Contact KC Supply
1.800.527.8775
Request Free Samples
1.800.527.8775

Elevator Buckets, elevator bolts, elevator parts technical information

STYLE:
CC-HD (Heavy Duty) and U-HD (Heavy Duty).
DESIGN:

High speed centrifugal discharge.

MATERIAL:

High density linear prime virgin polyethylene.

METHOD OF MANUFACTURE:

Injection molded.

COLOR:
Blue. White available upon request (for flour, sugar, etc).
TEMPERATURE RANGE:

-60°F to + 200°F/-51°C to + 93°C.

FLAMMABILITY:

The high density polyethylene used in Tapco buckets is termed “slow burning”. It has been tested under ASTM Test No. D635. It also meets the criteria for approval under the Motor Vehicle Safety Standard No. 302 and Underwriters’ Laboratory Bulletin No. 94. Combustion in an excess of air results in harmless by-products (fumes) which are nontoxic.

STANDARD DRILLING:

No Charge.

SPECIAL DRILLING:

Any pattern and hole diameter can be provided at minimal cost.

VENTING:

Available in five standard patterns. Venting page.

USABLE CAPACITY:
Net or usable capacity could range from 10% to 20% above water level. For engineering purposes Tapco recommends using WL (Water Level) + 10% for usable capacity.
SPACING:
Minimum bucket spacing has historically been nominal projection plus 2″. Many style CC buckets, however, are being used at projection plus 1″, and some even closer. For engineering purposes Tapco recommends using nominal projection plus 2″.
INTERCHANGEABILITY:

Can be intermixed with existing steel or nonmetallic buckets. Some consideration should be given to balance. Bucket projection varies by manufacturer and material. Check elevator for proper clearances. Contact Tapco for recommendations.

INSTALLATION:

Fanged elevator bolts and nylon insert lock nuts are recommended for pulleys 6″ in diameter and over. No. 3, Eclipse slotted head elevator bolts are recommended for pulleys under 6″ in diameter. Flat steel washers must be placed inside the bucket under the nuts. Check elevator for proper clearances.

FDA STATUS:

Polyethylene used meets the requirements of the Food Additives Law and Regulation No. 177.1520. Blue pigment meets Regulations No. 175.300 and 177.2600.

UV RESISTANCE:

No UV (ultraviolet) stabilizers are added to Tapco buckets because most elevator buckets are enclosed in casings. Tapco buckets should not be exposed to direct sunlight for extended periods of time.

RECOMMENDATIONS:

Polyethylene buckets are ideal for use with grains, feeds, fertilizers, seeds, food products, chemicals, sand, salt and most free flowing agricultural products handled in bucket elevators.

LIMITATIONS:

Polyethylene buckets should not be used with the following: (1) Materials over 200°F/93°C. (2) Sharp edged materials such as crushed glass or oyster shells. (3) Large dense materials such as gravel and ores over 3/8″ diameter. (4) A few extremely abrasive and sluggish materials such as dried whey, some pellets and extruded feeds. (5) Some severe soybean and rice applications.

CAUTION:

Welding and cutting on elevator legs without taking proper precautions is extremely dangerous and can cause a violent explosion. Polyethylene buckets can be ignited and will burn from improper welding and cutting.

IMPORTANT:

When elevating certain materials that harden or set up with moisture, a Tapco steel digger bucket should replace every 10th polyethylene bucket. Contact Tapco for recommendations.

48 Sizes  |  Style CC-HD & Style U-HD  |  Prime Virgin Impact Modified Nylon.

Sizes and Dimensions

AGRICULTURAL STYLE FOR HANDLING:FEATURES:
SOY BEANSOUTSTANDING IMPACT AND ABRASION RESISTANCE
FERTILIZERSEXTRAORDINARILY TOUGH AND MORE RIGID THAN POLYETHYLENE OR URETHANE
SALTBETTER HEAT RESISTANCE
SANDNONSPARKING
CHEMICALSNONCORROSIVE
OTHER ROUGH or ABRASIVE PRODUCTS

CC-HD Polyethylene Options:

Request Free Quote
Contact KC Supply
1.800.527.8775
Request Free Samples
1.800.527.8775

Elevator Buckets, elevator bolts, elevator parts technical information

STYLE:
CC-HD (Heavy Duty) and U-HD (Heavy Duty).
DESIGN:

High speed centrifugal discharge.

MATERIAL:

Prime virgin impact modified nylon.

METHOD OF MANUFACTURE:

Injection molded.

COLOR:
Gray
TEMPERATURE RANGE:

-40°F to + 275°F/-40°C to + 135°C.

FLAMMABILITY:

The impact modified nylon used in Tapco buckets is termed “slow burning”. It has been tested under Underwriters’ Laboratory Bulletin No. 94 HB. The primary toxic product of combustion is carbon monoxide.

STANDARD DRILLING:

No Charge.

SPECIAL DRILLING:

Any pattern and hole diameter can be provided at minimal cost.

VENTING:

Available in five standard patterns. See catalog for specifications. Venting page.

USABLE CAPACITY:
Net or usable capacity could range from 10% to 20% above water level. For engineering purposes Tapco recommends using WL (Water Level) + 10% for usable capacity.
SPACING:
Minimum bucket spacing has historically been nominal projection plus 2″. Many style CC buckets, however, are being used at projection plus 1″, and some even closer. For engineering purposes Tapco recommends using nominal projection plus 2″.
INTERCHANGEABILITY:

Can be intermixed with existing steel or nonmetallic buckets. Some consideration should be given to balance. Bucket projection varies by manufacturer and material. Check elevator for proper clearances. Contact Tapco for recommendations.

INSTALLATION:

Fanged elevator bolts and nylon insert lock nuts are recommended for pulleys 6″ in diameter and over. No. 3, Eclipse slotted head elevator bolts are recommended for pulleys under 6″ in diameter. Flat steel washers must be placed inside the bucket under the nuts. Check elevator for proper clearances.

FDA STATUS:

Impact modified nylon does not meet requirements for FDA approval.

UV RESISTANCE:

No UV (ultraviolet) stabilizers are added to Tapco buckets because most elevator buckets are enclosed in casings. Tapco buckets should not be exposed to direct sunlight for extended periods of time.

RECOMMENDATIONS:

Nylon buckets are extremely strong. They are unsurpassed in rough or severe service elevators. The outstanding abrasion resistant characteristics make this an excellent bucket for grain, soybeans, feeds, fertilizer, chemicals, sand and other freeflowing products.

LIMITATIONS:

Nylon buckets should not be used in the following: (1) Materials over 275°F/135°C. (2) Large dense material such as gravel and ore over 3/8″ diameter. (3) Some sharp sluggish materials such as large glass cullet or oyster shells.

CAUTION:

Welding and cutting on elevator legs without taking proper precautions is extremely dangerous and can cause a violent explosion. Nylon buckets can be ignited and will burn from improper welding and cutting.

IMPORTANT:

When elevating certain materials that harden or set up with moisture, a Tapco steel digger bucket should replace every 10th nylon bucket. Contact Tapco for recommendations.

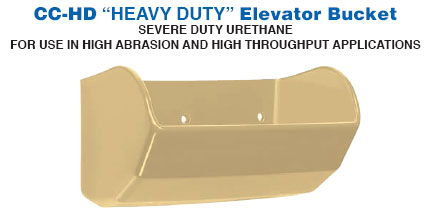

48 Sizes  |  Style CC-HD & Style U-HD  |  Prime Virgin Thermoplastic Urethane.

Sizes and Dimensions

AGRICULTURAL STYLE FOR HANDLINGFEATURES:
PELLETIZED OR EXTRUDED FEEDSEXTREME ABRASION RESISTANCE
SOYBEANSTOUGH AND FLEXIBLE
FERTILIZERSTHICK WALLS
OYSTER SHELLSLIGHT WEIGHT
SALTCLEAN DISCHARGE
SANDLESS PRODUCT DAMAGE
CHEMICALSREDUCES BACKLEGGING
OTHER ABRASIVE PRODUCTSNONSPARKING
NONCORROSIVE

CC-HD Polyethylene Options:

Request Free Quote
Contact KC Supply
1.800.527.8775
Request Free Samples
1.800.527.8775

Elevator Buckets, elevator bolts, elevator parts technical information

STYLE:
CC-HD (Heavy Duty) and U-HD (Heavy Duty).
DESIGN:

High speed centrifugal discharge.

MATERIAL:

Prime virgin thermoplastic urethane.

METHOD OF MANUFACTURE:

Injection molded.

COLOR:
Beige (Tan).
TEMPERATURE RANGE:

-60°F to + 212°F/-51° C to + 100°C.

DUROMETER RANGE:
Shore D 60-70.
FLAMMABILITY:

The urethane used in Tapco buckets, meets the criteria of the Underwriters’ Laboratory Bulletin No. 94 HB. It has been tested under ASTM Test No. D635 and has a burn rate of 0.76”/min. it also meets approval under motor vehicle safety standard No. 302, with a burn rate of 0.0”/min.

STANDARD DRILLING:

No Charge.

SPECIAL DRILLING:

Any pattern and hole diameter can be provided at minimal cost.

VENTING:

Available in five standard patterns. See catalog for specifications. Venting page.

USABLE CAPACITY:
Net or usable capacity could range from 10% to 20% above water level. For engineering purposes Tapco recommends using WL (Water Level) + 10% for usable capacity.
SPACING:
Minimum bucket spacing has historically been nominal projection plus 2″. Many style CC buckets, however, are being used at projection plus 1″, and some even closer. For engineering purposes Tapco recommends using nominal projection plus 2″.
INTERCHANGEABILITY:

Can be intermixed with existing steel or nonmetallic buckets. Some consideration should be given to balance. Bucket projection varies by manufacturer and material. Check elevator for proper clearances. Contact Tapco for recommendations.

INSTALLATION:

Fanged elevator bolts and nylon insert lock nuts are recommended for pulleys 6″ in diameter and over. No. 3, Eclipse slotted head elevator bolts are recommended for pulleys under 6″ in diameter. Large flat steel (fender) washers must be placed inside the bucket under the nuts. Check elevator for proper clearances.

FDA STATUS:

Our standard urethane does not meet the requirements for FDA approval. FDA approved urethane is available, special order.

UV RESISTANCE:

No UV (ultraviolet) stabilizers are added to Tapco buckets because most elevator buckets are enclosed in casings. Tapco buckets should not be exposed to direct sunlight for extended periods of time.

RECOMMENDATIONS:

Urethane buckets are ideal for use with pelletized high fat and molasses feeds, extruded feeds, severe soybean, rice and barley applications and other abrasive agricultural products. They are excellent for extremely high throughput elevators.

LIMITATIONS:

Urethane buckets should not be used on the following: (1) Materials over 212°F/100°C. (2) Large dense materials such as gravel and ores over 3/8″ in diameter. (3) Some sharp sluggish materials such as large glass cullet.

CAUTION:

Welding and cutting on elevator legs without taking proper precautions is extremely dangerous and can cause a violent explosion. Urethane buckets can be ignited and will burn from improper welding and cutting.

IMPORTANT:

When elevating materials that harden or set up with moisture, a Tapco steel digger bucket should replace every 10th urethane bucket. Contact Tapco for recommendations.
